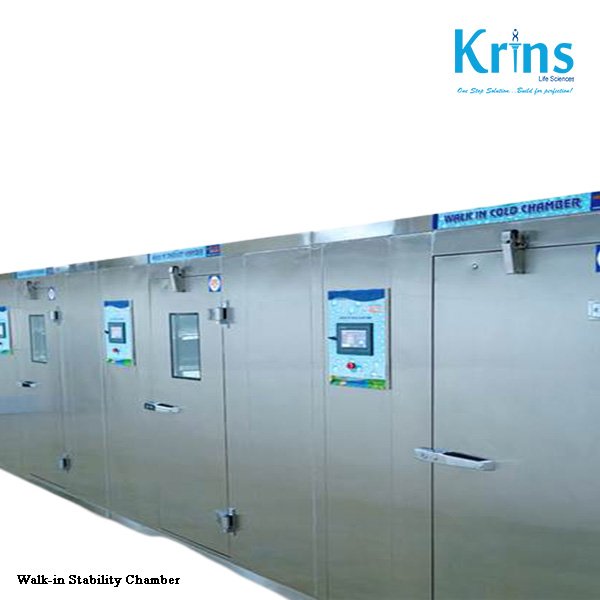

Walk-in Stability Chamber

$0.00

SKU: Walk-in Stability Chamber Category:

Description

Walk-in Stability Chamber – Technical Specification

Temperature Range 20°c to 60°C
Humidity Range 40 %RH – 95 %RH



Accuracy ± 0.2 °C / ± 2.0 %RH
Uniformity ± 2.0 °C / ± 3.0 %RH
Suitable for 25°C & 60 %RH, 30°C & 65 %RH, 40°C & 75 %RH, 30°C & 75 %RH Specially designed chambers for Low Humidity conditions such as 25°C & 40 %RH, 40°C & 25 %RH, 30°C & 35 %RH



Models

Cap

Internal Dimension

In MM

Width      Depth       Height

External Dimension

In MM

Width   Depth    Height

No. of Trays

KK-GMP-WSC3060L

3060 Ltr

1700

1000

1800

1860

1160

1960

10

KK-GMP-WSC6000L

6000 Ltr

2000

1500

2000

2160

1660

2160

20

KK-GMP-WSC8000L

8000 Ltr

2000

2000

2000

2160

2160

2160

24

KK-GMP-WSClO000L

10000 Ltr

2000

2500

2000

2160

2660

2160

30

KK-GMP-WSC12000L

12000 Ltr

2000

3000

2000

2160

3160

2160

30

KK-GMP-WSC16000L

16000 Ltr

2000

4000

2000

2160

4160

2160

40



Features:
Low energy and Low water Consumption Equipment



Construction:
  • Prefabricated modular panel type construction with PUF insulation to be assembled on site with floor panels having extra reinforcement to sustain the movement and sample load inside the chamber.
  • The inner working chamber is water & vapour tight high-grade stainless steel.
  • Chambers are provided with effective air circulation system, heating & cooling systems and humidity generator system.
  • Multi pane vacuum sealed observation glass window to view the samples without disturbing the test condition & human safety.

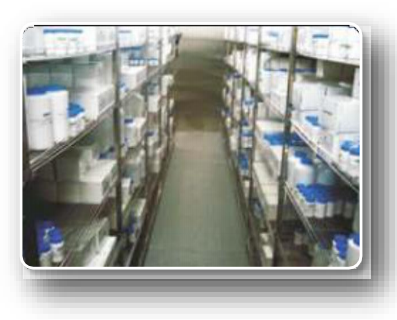

  • Heavy duty solid stainless steel duly electro polished wire mesh/perforated type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience, along with detachable racks with adjustable angles.



Walk-in Stability Chamber – Control Systems:

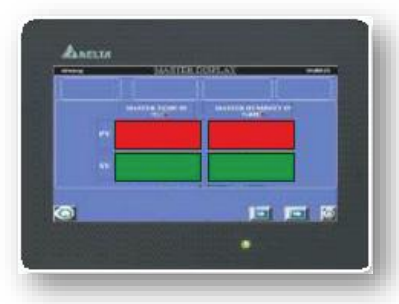

  • 7″ HMI with TFT LCD Colour touch screen with password protection for all parameter actual status monitoring of utilities like Sensor, Heating & Cooling System, Humidity System.

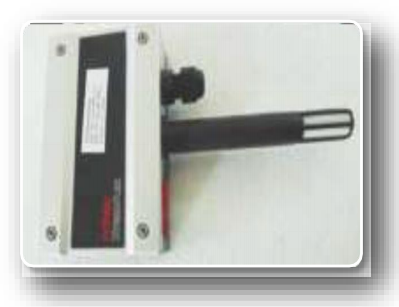

  • Rotronic make 4-20mA sensors for better accuracy.

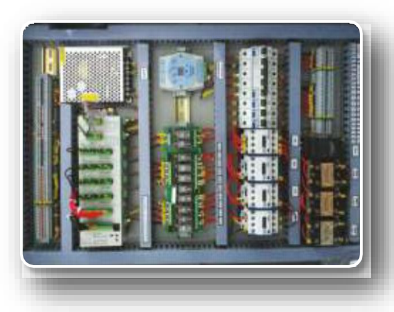

  • PLC with auto tuning facility for accurate control of temperature and humidity conditions.
  • Walk-in Stability Chamber has PLC system for an auto changeover of standby systems.
  • Data Storage unit facility to transfer the data to software via Ethernet for web based online remote monitoring with Date, Time, SV, PV, Door Open/ Close, Power On/ Off remarks. Direct report printout provision from HMI.


NOTE:
Extra Trays will be provided on request as per capacity of chamber. Other Sizes and Customize models are available on request.

Alarm & Safety:
  • Temperature deviation & RH deviation Alarm,
  • Power Failure Alarm,
  • Continues open door alarm,
  • Temperature & RH Safety Cutoff,
  • Low water level Cut off
  • Auto change over Facility for RH Generator & Cooling System



Special Features:
  • Special door lock is provided which can opened from inside even if locked from outside.
  • Door operation with password Access for Particular USER having the event log Door open ENTRY USER: XYZ & Door open EXIT USER: XYZ in software.
  • Person trapped cut off facility in chamber.



Software (21CFR PART-11 Compliance)
  • Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.



Optional
  • Stand by Cooling System
  • Stand by Humidity System
  • Scanner (8 Temp.+ 8 RH for Online Monitoring Purpose)
  • Mobile Alert System
  • Security Alarm System
  • Chiller System
