Description
|

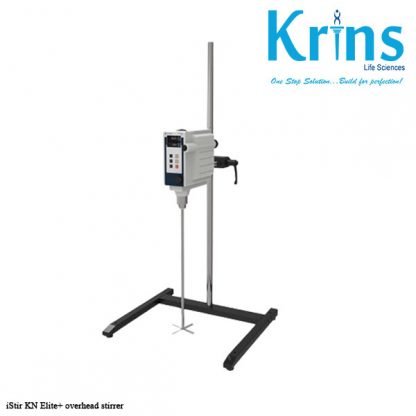

iStir KN Elite+ Series Overhead Stirrer |
Powerful BLDC motor for maintenance free long life |
| torque upto 100Ncm | |
| Speed setting from 50 upto 2000 RPM | |
| Max loading Capacity upto 100 litres | |
| Easy to operate interface with independent control with no shared display | |
| viscosity upto 70000 mPas | |
| smart controlled operation | |
| timer upto 99 hours and 59 minutes and infinite operation mode | |
| Clockwise-Counter-Clockwise interchange | |
| power intermittent mode | |
| torque display (trend) | |
| temperature detection | |
| USB port | |
| remote control | |
|
? |
The Stand, Boss head & Impeller needs to be purchased separately. (refer below) |
|
iStir KN OH 50E+ |
50 Ncm, 50 litre capacity, upto 2000 RPM, 30000 mPas-Will be introduced soon |
|
iStir KN OH 75E+ |
75 Ncm, 75 litre capacity, upto 2000 RPM, 50000 mPas -Will be introduced soon |
|
iStir KN OH 100E+ |
100 Ncm, 100 litre capacity, upto 1300 RPM, 70000 mPas- Will be introduced soon |
|
Overhead stirrer Accessories |
|||
|
CAT# |
Shaft Length |
Impeller Name |
|
|
? |
250mm |
Cross-Welded Impeller_50 x 12 x 250 mm |  |
| KN OHA-R01 |
350mm |
Cross-Welded Impeller_50 x 12 x 350 mm |  |
| KN OHS-R02 |
350mm |
Straight Blade Impeller_35 x 12 x 350 mm |  |
| KN OHS-R03 |
550mm |
Straight Blade Impeller_50 x 12 x 550 mm |  |
| KN OHS- R05 |
550mm |
Pivoting Blade Impeller_60 x 15 x 550 mm |  |
| KN OHS-R07 |
550mm |
Collapsible Blade Impeller_550 mm |  |
| KN OHS-T02 |
550mm |
Square Blade Impeller_38 x 38 x 550 mm |  |
| KN OHS-T03 |
800mm |
Square Blade Impeller_70 x 70 x 800 mm |  |
| KN OHS-T05 |
550mm |
Anchor Blade Impeller_50 x 50 x 550 mm |  |
| KN OHS-T06 |
800mm |
Anchor Blade Impeller_100 x 100 x 800 mm |  |
| KN OHS-T08 |
550mm |
Paddle Blade Impeller_70 x 70 x 550mm |  |
| KN OHS-T09 |
800mm |
Paddle Blade Impeller_70 x 70 x 800mm |  |
| KN OHS-T10 |
550mm |
Paddle Blade Impeller_70 x 80 x 550 mm |  |
| KN OHS-T11 |
800mm |
Paddle Balde Impeller_70 x 80 x 800 mm |  |
| KN OHS-A01 |
350mm |
A01 Propeller Impeller_50 x 8 x 350 mm |  |
| KN OHS-A02 |
550mm |
A02 Propeller Impeller_100 x 8 x 550 mm |  |
| KN OHS-A03 |
800mm |
A03 Propeller Impeller_130 x 8 x 800 mm |  |
|
Overhead stirrer Accessories |
|||
| Sr. No. |
Stand Name |
||
|
1 |
KN-OHS1-PS-560 |
Plate Stand 220 mm x 320 mm with rod height of 575 mm (Max. load 5 Lt) |  |
|
2 |
KN-OHS1-PS-800 |
Plate Stand 220 mm x 320 mm with rod height of 825 mm (Max. load 5 Lt) | |
|
3 |
KN-OHS1-PS-1000 |
Plate Stand 220 mm x 320 mm with rod height of 1025 mm (Max. load 5 Lt) | |
|
4 |
KN-OHS1-PBH |
Boss head Clamp for plate stand (common for all rod lengths) |  |
|
5A |
KN-OHS-HS |
H Stand 500 x 450 x 1020 mm without boss head clamp |  |
| 5B |
KN-OHS-HBH |
Boss head Clamp for H-Stand |  |
|
6 |
KN-OHS-C1 |
Chuck |  |
