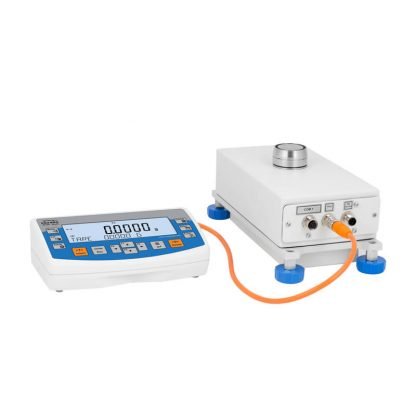

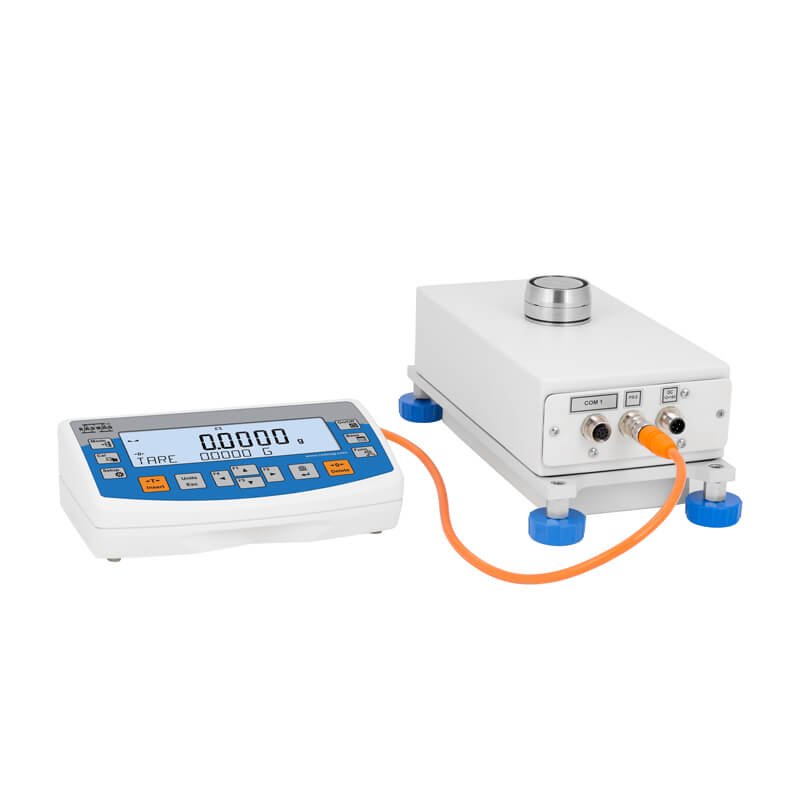

MAS.1 standard series of high resolution electromagnetic modules is intended to be incorporated into customer?s weighing systems.
Operation of the MAS.1 high resolution electromagnetic module is based on electromagnetic digital converter. Compact design and integrated electronics provide various possibilities of MAS.1 module adaptation into technological lines and installation inside customers’ devices.
Due to the high measuring accuracy, it is recommended to install the module inside customer’s instrument (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The power supply for MAS.1 module is standard equipment.
- Brand new design of the electromagnetic mechanism with aluminium housing,
- Measurement accuracy of 0.01 mg,
- Overload protection,
- Ease of adaptation to the required storage space,
- Internal adjustment,
- Cooperation with R and Y series indicators.
Maximum capacity [Max]
Weighing pan dimensions
|KR MAS.1.21.R||21 g||0,01 mg||? 33 mm|
|KR MAS.1.21.Y||21 g||0,01 mg||? 33 mm|
|KR MAS.1.51.R||51 g||0,01 mg||? 33 mm|
|KR MAS.1.51.Y||51 g||0,01 mg||? 33 mm|
|KR MAS.1.51||51 g||0,01 mg||? 33 mm|
|KR MAS.1.82/220.R||82/220 g||0,01/0,1 mg||? 42 mm|
|KR MAS.1.82/220||82/220 g||0,01/0,1 mg||? 42 mm|
|KR MAS.1.82/220.Y||82/220 g||0,01/0,1 mg||? 42 mm|
|KR MAS 220.Y||220 g||0,1 mg||? 42 mm|
|KR MAS 220.R||220 g||0,1 mg||? 42 mm|
