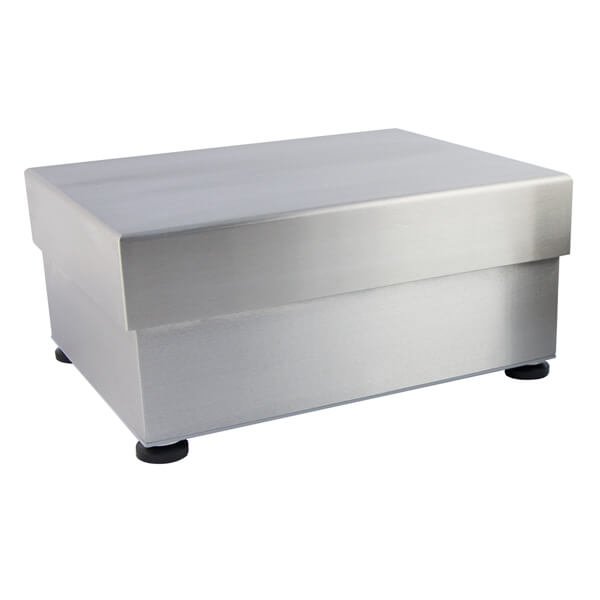

HRP, the series of professional high resolution weighing platforms, perfectly suits every single branch of industry requiring great weighing accuracy, precision and repeatability of measurement in challenging industrial environment. The HRP series is your perfect workmate.
Automatic adjustment performed by means of an internal adjustment weight guarantees the highest quality of operation and repeatability of measurement. In comparison to manual adjustment process the automatic one is both, time-saving and convenient.
Data safety and archiving is assured by software.
Light HRP high resolution weighing platform is equipped with the following interfaces:
RS 232, Ethernet, Profibus (optionally instead of Ethernet and IN/OUT) 3xOUT / 2IN.
- Brand new construction of the electromagnetic mechanism housed in a stainless steel tight casing,
- Protection against overloading,
- Inbuilt system of adjustment, by means of an internal weight,
- High ingress protection – IP67,
- Interfaces: RS232, Ethernet, Profibus* (as an option), and dedicated 3 in /2 out, enabling cooperation with peripheral devices (* dependently on hardware configuration),
- Cooperation with PUE 7.1 and HY10 terminals.
Maximum capacity [Max]
|Weighing pan dimensions|
|KR High Resolution Platforms PL.16.HRP.H||16 kg||0,1 g||360×280 mm|
|KR High Resolution Platforms PL.32.HRP.H||32 kg||0,1 g||360×280 mm|
|KR High Resolution Platforms PL.62.HRP||62 kg||0,5 g||500×500 mm|
|KR High Resolution Platforms PL.120.HRP||120 kg||1 g||500×500 mm|
|KR High Resolution Platforms PL.150.HRP||150 kg||1 g||800×600 mm|
|KR High Resolution Platforms PL.300.1.HRP||300 kg||2 g||1000×800 mm|
|KR High Resolution Platforms PL.300.HRP||300 kg||2 g||800×600 mm|
|KR High Resolution Platforms PL.600.HRP.H||600 kg||5 g||1000×800 mm|
|KR High Resolution Platforms PL.1100.HRP.H||1100 kg||10 g||1000×800 mm|
|KR High Resolution Platforms PL.2000.HRP.H||2000 kg||20 g||1250×1000 mm|
