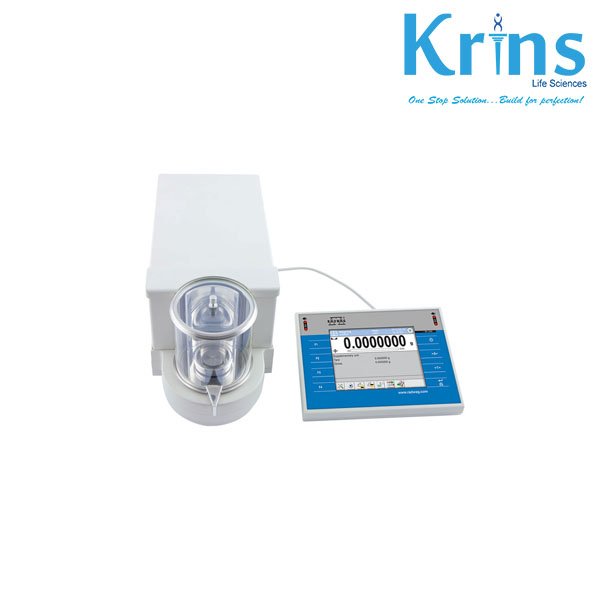

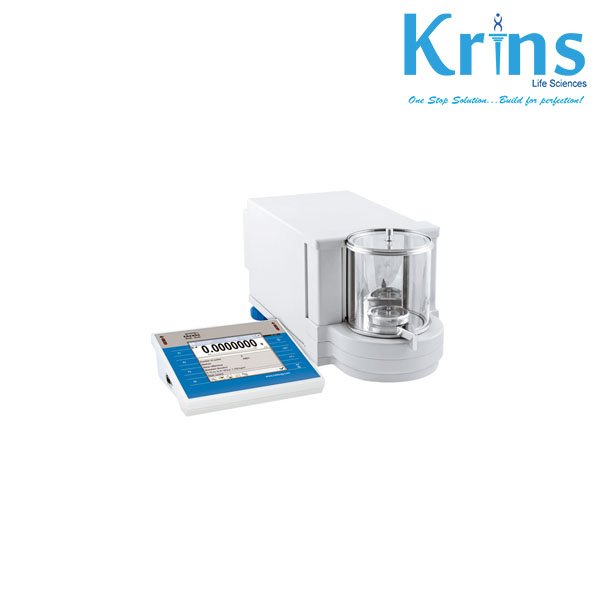

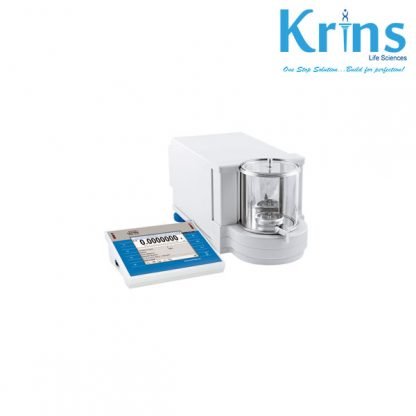

UYA 5.4Y.KO Mass Comparator




Maximum capacity [Max]: 5,1g

Readability [d]: 0,1?g

The newest line of mass comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1mg to 5 g in class E1 and lower.

Mass comparators are used for both, ensuring traceability of mass measurements and verification of weights in accordance with the principles of legal metrology. Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator UYA 4Y.KO series, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system. Such solution guarantees elimination of temperature influence (warming of electronic elements) on the comparator’s indications. The comparator features an aesthetic, cylindrically shaped weighing chamber with glass draft shield and automatic door opening system. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on the measuring result.
