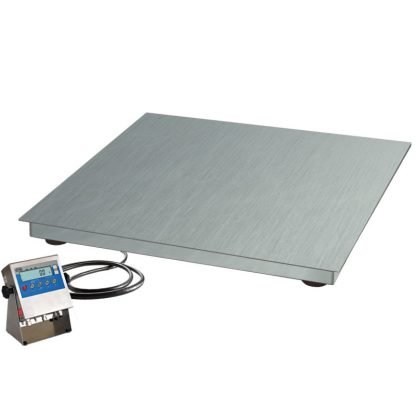

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on the weighing platform. The platform scales WPT/4H series is fully made of stainless steel profiles with stainless steel weighing platform. The WPT/4H series comprises a system of 4 load cell that are connected to an indicator PUE C/31H series in stainless steel housing. The indicator features backlit LCD display and function buttons.
The weighing platform and the indicator are connected through a long cable enabling hanging the indicator on a wall.
The scale is powered from mains, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
Maximum capacity [Max]
Weighing pan dimensions
|KR WPT/4 300 H6||300 kg||100 g||800×800 mm|
|KR WPT/4 300 H7||300 kg||100 g||1000×1000 mm|
|KR WPT/4 600 H6||600 kg||200 g||800×800 mm|
|KR WPT/4 600 H7||600 kg||200 g||1000×1000 mm|
|KR WPT/4 1500 H9||1500 kg||500 g||1500×1500 mm|
|KR WPT/4 1500 H8||1500 kg||500 g||1200×1200 mm|
|KR WPT/4 1500 H8/9||1500 kg||500 g||1200×1500 mm|
|KR WPT/4 1500 H7||1500 kg||500 g||1000×1000 mm|
|KR WPT/4 3000 H8||3000 kg||1000 g||1200×1200 mm|
|KR WPT/4 3000 H10||3000 kg||1000 g||1500×2000 mm|
|KR WPT/4 3000 H9||3000 kg||1000 g||1500×1500 mm|
|KR WPT/4 3000 H8/9||3000 kg||1000 g||1200×1500 mm|
|KR WPT/4 6000 H10||6000 kg||2000 g||1500×2000 mm|
