WPT/4C Platform Scales

$140.00

Clear
SKU: N/A Category:

Description

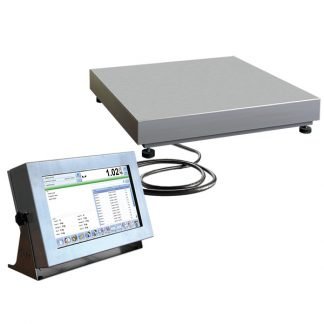

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on the weighing platform. The platform scales WPT/4 series is made of mild steel powder coated construction of the weighing platform. The platform comprises 4 load cells connected to an indicator PUE C/31 series featuring backlit LCD display and 5 function buttons.

The weighing platform and the indicator are connected through a long cable enabling hanging the indicator on a wall.
The WPT/4 series is available in pit version for easy placing heavy loads on the weighing platform without application of ramps.

Scales is available in dual range version on surcharge.

Product name
Maximum capacity [Max]
Readability [d]
Weighing pan dimensions
KR WPT/4 150 C7 150 kg 0,05 kg 1000×1000 mm
KR WPT/4 150 C6 150 kg 0,05 kg 800×800 mm
KR WPT/4 300 C6 300 kg 0,1 kg 800×800 mm
KR WPT/4 300 C7 300 kg 0,1 kg 1000×1000 mm
KR WPT/4 600 C7 600 kg 0,2 kg 1000×1000 mm
KR WPT/4 600 C6 600 kg 0,2 kg 800×800 mm
KR WPT/4 1500 C8 1500 kg 0,5 kg 1200×1200 mm
KR WPT/4 1500 C8/9 1500 kg 0,5 kg 1200×1500 mm
KR WPT/4 1500 C7 1500 kg 0,5 kg 1000×1000 mm
KR WPT/4 1500 C9 1500 kg 0,5 kg 1500×1500 mm
KR WPT/4 1500 C6 1500 kg 0,5 kg 800×800 mm
KR WPT/4 3000 C8 3000 kg 1 kg 1200×1200 mm
KR WPT/4 3000 C11 3000 kg 1 kg 2000×2000 mm
KR WPT/4 3000 C9 3000 kg 1 kg 1500×1500 mm
KR WPT/4 3000 C8/9 3000 kg 1 kg 1200×1500 mm
KR WPT/4 3000 C10 3000 kg 1 kg 1500×2000 mm
KR WPT/4 6000 C10 6000 kg 2 kg 1500×2000 mm
KR WPT/4 6000 C11 6000 kg 2 kg 2000×2000 mm



Additional information

product name

KR WPT/4 150 C7, KR WPT/4 150 C6, KR WPT/4 300 C6, KR WPT/4 300 C7, KR WPT/4 600 C7, KR WPT/4 600 C6, KR WPT/4 1500 C8, KR WPT/4 1500 C8/9, KR WPT/4 1500 C7, KR WPT/4 1500 C9, KR WPT/4 1500 C6, KR WPT/4 3000 C8, KR WPT/4 3000 C11, KR WPT/4 3000 C9, KR WPT/4 3000 C8/9, KR WPT/4 3000 C10, KR WPT/4 6000 C10, KR WPT/4 6000 C11
