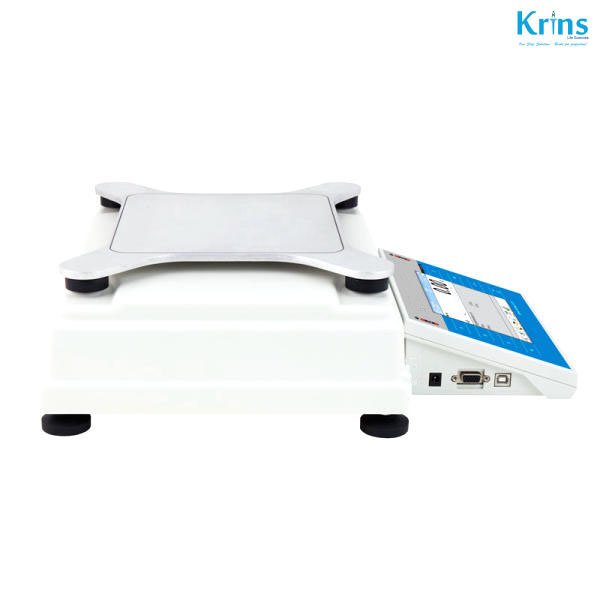

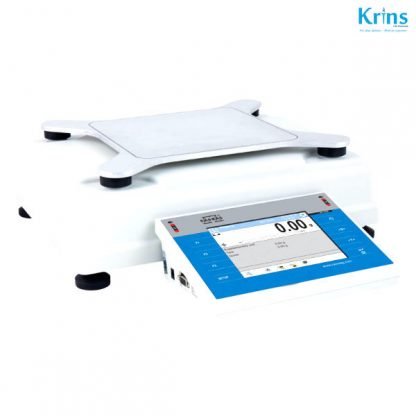

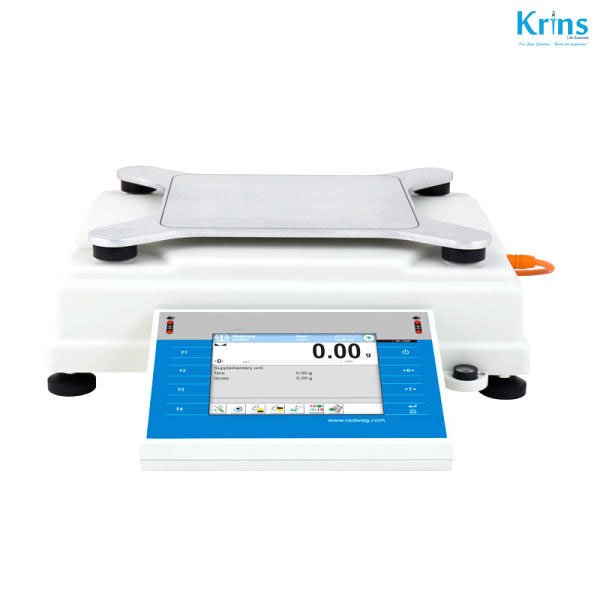

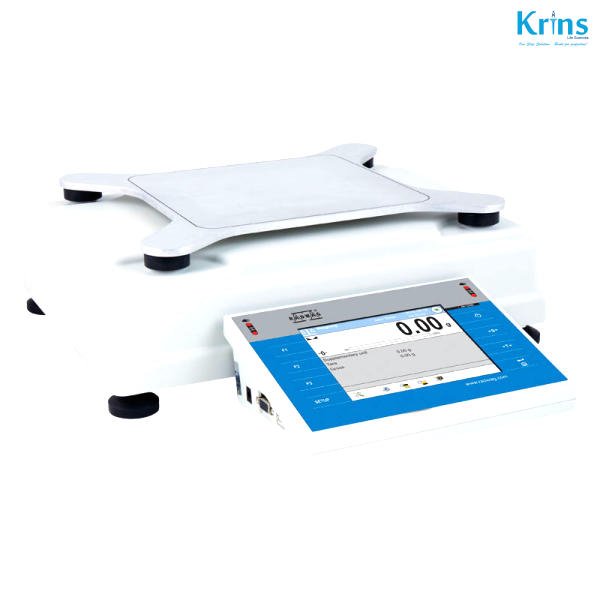

PM 4Y Precision Balances

$140.00

Clear

Description

PM series balances are equipped with an innovative measuring system based on MonoBLOCK technology. This enables operation with readability of 0.01g at capacity of 15kg, and with readability of 0.1g at capacity of 50 kg.
Use of the new measuring system, which is a subject matter of patent, guarantees stability of repeatability over time at a range sd<1d. The unique measuring system solution is characterized with great resistance to ambient conditions change.
An in-built 4-point protection system prevents balance overloading, this ensures safety in case too heavy load is applied onto the weighing pan.
Main features:
  • new MonoBLOCK sensor;
  • unrivalled repeatability of indications;
  • weighing of heavy loads with maximum accuracy;
  • intuitive operation guaranteed by a colour touchscreen;
  • compliance with CFR21;
  • fast mass measurements;
  • robust mechanical design ? new lower weighing platform;
  • improved ergonomics ? two types of weighing terminal for selection.

Balance offers possibility of weighing loads outside the weighing platform (so called under-pan weighing). This is an alternative for weighing loads with non-standard dimensions and shapes or those generating magnetic field.

Product name Maximum capacity [Max] Readability [d] Weighing pan dimensions
KR PM 10.4Y 10 kg 0,01 g 200?185 mm
KR PM 15.4Y 15 kg 0,01 g 200?185 mm
KR PM 35.4Y 35 kg 0,1 g 347?259 mm
KR PM 50.4Y 50 kg 0,1 g 347?259 mm
KR PM 60.1.4Y 60 kg 1 g 400?500 mm
KR PM 60.05.4Y 60 kg 0,5 g 400?500 mm





Additional information

product name

KR PM 10.4Y, KR PM 15.4Y, KR PM 35.4Y, KR PM 50.4Y, KR PM 60.1.4Y, KR PM 60.05.4Y
